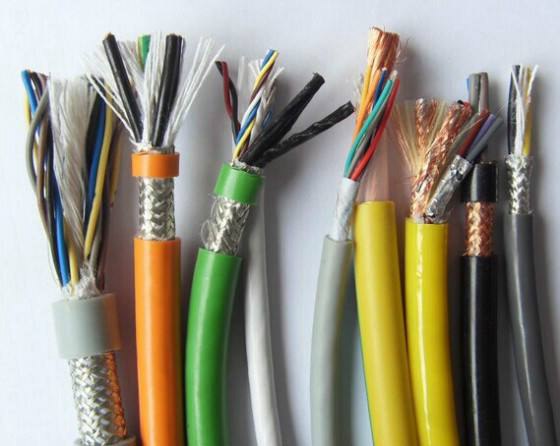

flex-CPUR柔性电缆
| 项目名称 | 技术指标 | 项目名称 | 技术指标 | 项目名称 | 技术指标 |
| 导体结构 | 软芯 | 内导体资料 | 无氧铜丝 | 额外电压 | 450/750V |
| 线芯色彩 | 用户自定 | 绝缘资料 | 特种PVC | 工作温度+ | 105 |
| 织造密度 | ≥80% | 织造资料 | 韧铜线 | 工作温度- | 40 |
| 护套资料 | 特种PVC | 加强资料 | 软钢丝 | 曲折半径 | 6倍 |
| 类型 | 电缆标准选型表 | ||||
| flex-CPUR | 2*0.5 | 5*1.0 | 8*4 | 16*1.5 | 37*2.5 |
| flex-CPUR | 2*0.75 | 5*1.5 | 8*6 | 16*2.5 | 44*0.5 |
| flex-CPUR | 2*1.0 | 5*2.5 | 10*0.5 | 19*0.5 | 44*0.75 |
| flex-CPUR | 2*1.5 | 5*4 | 10*0.75 | 19*0.75 | 44*1.0 |
| flex-CPUR | 2*2.5 | 5*6 | 10*1.0 | 19*1.0 | 44*1.5 |
| flex-CPUR | 2*4 | 5*10 | 10*1.5 | 19*1.5 | 44*2.5 |
| flex-CPUR | 2*6 | 6*0.5 | 10*2.5 | 19*2.5 | 48*0.5 |
| flex-CPUR | 2*10 | 6*0.75 | 10*4 | 24*0.5 | 48*0.75 |
| flex-CPUR | 3*0.5 | 6*1.0 | 10*6 | 24*0.75 | 48*1 |
| flex-CPUR | 3*0.75 | 6*1.5 | 12*0.5 | 24*1.0 | 48*1.5 |
| flex-CPUR | 3*1.0 | 6*2.5 | 12*0.75 | 24*1.5 | 48*2.5 |
| flex-CPUR | 3*1.5 | 6*4 | 12*1.0 | 24*2.5 | 52*0.5 |
| flex-CPUR | 3*2.5 | 6*6 | 12*1.5 | 27*0.5 | 52*0.75 |
| flex-CPUR | 3*4 | 6*10 | 12*2.5 | 27*0.75 | 52*1.0 |
| flex-CPUR | 3*6 | 7*0.5 | 12*4 | 27*1.0 | 52*1.5 |
| flex-CPUR | 3*10 | 7*0.75 | 12*6 | 27*1.5 | 52*2.5 |
| flex-CPUR | 4*0.5 | 7*1.0 | 14*0.5 | 27*2.5 | 61*0.5 |
| flex-CPUR | 4*0.75 | 7*1.5 | 14*0.75 | 30*0.5 | 61*0.75 |
| flex-CPUR | 4*1.0 | 7*2.5 | 14*1.0 | 30*0.75 | 61*1.0 |
| flex-CPUR | 4*1.5 | 7*4 | 14*1.5 | 30*1.0 | 61*1.5 |
| flex-CPUR | 4*2.5 | 7*6 | 14*2.5 | 30*1.5 | 62*0.5 |
| flex-CPUR | 4*4 | 8*0.5 | 14*4 | 30*2.5 | 62*0.75 |
| flex-CPUR | 4*6 | 8*0.75 | 14*6 | 37*0.5 | 62*1.0 |
| flex-CPUR | 4*10 | 8*1.0 | 16*0.5 | 37*0.75 | 62*1.5 |
| flex-CPUR | 5*0.5 | 8*1.5 | 16*0.75 | 37*1.0 | 63*0.5 |
| flex-CPUR | 5*0.75 | 8*2.5 | 16*1.0 | 37*1.5 | 63*0.75 |
